短波、便携式红外热成像仪M480N , 600~3000°C, 停产

规格:PYROVIEW M480N , M480N , M480N portable, 停产

单位:

浏览次数:6407

性能标签:

短波便携式红外热成像仪 , 短波手持式红外热像仪 , M480N , 600~1500°C , 1400 ~ 3000°C , PYROVIEW M480N portable , 高温时短波测温精度更高、更准确. 停产.


0


产品详细描述


该系列已经停产。

短波、便携式红外热像仪

PYROVIEW M480N , M480N

全球第一款短波便携式红外热像仪

重要特征:

测温范围: 600 °C ~ 1500 °C ,可选1400 °C~ 3000 °C

波长: 0.8~1.1μm

像素:480 x 360

帧频:25Hz

显示: 可视化、触摸屏

记录: 静态热像图,热像图视频

数据传输: 以太网


进出口证书: 不需要

可直接进口,最长交货期8周

现货供应

广泛应用 :

适用于钢铁冶金、有色金属、玻璃、陶瓷、热处理、激光焊接、热加工、热处理、航天航空材料、石墨烯等高温过程、炉窑的测温和热成像

技术数据:

型号 PYROVIEW M480N portable ,  简写 M480N
订货号  2102A10101
光谱范围  0.8 µm ~ 1.1 µm
测温范围  600 °C ~ 1500 °C , 可选1400 °C ~ 3000 °C (均为一个连续测温范围)
NETD 1,2  < 1 K (600 °C, 25 Hz) 3
视场角  33° × 25°
传感器  高动态二维Si-CMOS红外阵列(480 × 360像素)
测量误差  2% 测量值°C (目标温度 < 1400 °C) 4
测量频率  约 25 Hz
响应时间  约 80 ms
通信接口  以太网RJ45离线传输数据
显示  彩色触摸屏显示, 全标定热图像,带中心温度或最大温度(热点)
数据存储  存贮IRDX 格式的单个图像和序列(视频), 存储BMP或JPG单个图像
通过触摸屏设置  发射率10~100%,中心/热点温度显示调色板, 显示和删除图像或视频,
温度单位°C/°F,显示参数
供电电源  4个锂离子电池,3.7 V, 2800 mAh, 可通过PoE充电, 完全充电需要4小时
重量 0.8 kg
外壳 铝 / 塑料外壳, IP50
操作温度  0 °C ~ 50 °C (电池充电时 : 0 °C ~ 40 °C
存贮温度  –20 °C ~ 70 °C, 最大相对湿度95 %
软件  控制和显示程序PYROSOFT Compact, 可选PYROSOFT Professional
供货范围  便携式红外热像仪PYROVIEW 480N portable, 标定证书, 用户手册,
 软件PYROSOFT Compact, 以太网电缆, PoE电池包, 便携箱
备注:1  噪声等温差。2 技术指标经过黑体炉标定,标定环境温度 25 °C3 < 6 K (2000 °C, 60 Hz). 3 % 测量值( °C,测量温度> 1400°C)。

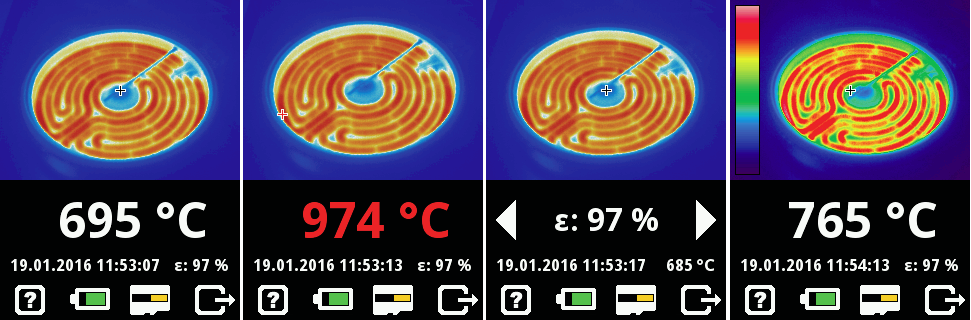

PV480N便携式红外热像仪热图像

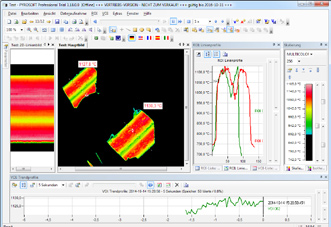

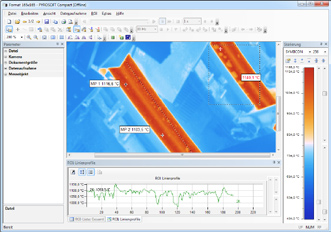

 PV480N热像图一      PV480N热像图二

 有色金属冶炼 , 闪速炉

  某金属炉便携式红外热像仪PV480N实测



某金属冶炼炉2

某金属冶炼炉便携式红外热像仪PV480N实测

PV480N全套包装

欢迎关注我们微信公众号KingDIA

如需了解更多红外产品及应用,

请关注我们的微信公众号KingDIAS

或扫一扫二维码:

DIAS红外测温成像微信公众号



 您知道吗?

要减少发射率对测温精度的影响,很重要的一点就是尽量采用短波测量,这一点很重要。例如: 目标温度为1200°C.发射率设置错了10%, 用短波光谱范围(0.8μm~1.1μm)的红外热像仪测量, 测量误差仅仅为1.3%;但如果用长波8μm~14μm的红外热成像仪测量,测量误差会高达11%(140°C);目标温度增加,测量误差增加得更大,所以高温测量采用短波红外热像仪是必须的。

描述和应用

红外热成像仪PYROVIEW 480N portable是世界上第一款短波、便携式高温红外热成像仪。

因为使用一个高动态硅阵列红外探测器,所以可实现600~1500°C及1400~3000°C宽范围的测温范围。

PYROVIEW 480N portable红外热成像仪的像素为480x360,测量频率为25Hz。此外,该仪器在最低测温范围以下,依然可以显示图像,使用者就可以获得空间图像信息。

热图像可以在彩色触摸屏上看到,另外,中心温度或最高温度包含位置都在触摸屏上显示为数值。

该热像仪的菜单也很容易使用,可以通过触摸屏调整红外热像仪的所有重要参数。

该红外热成像仪可以记录冻结的热图像和热图像视频。以太网通信接口(RJ45)可以将存储的热图像和热图像视频传输到计算机,以方便用户进行后期分析和评估。

适用于钢铁冶金、有色金属、玻璃、陶瓷、热处理、激光焊接、热加工、热处理、航天航空材料、石墨烯等高温过程的测温和热成像。



Based on many years of experience in stationary thermal imaging devices for the measurement of high temperatures DIAS Infrared brings a flexible portable and robust infrared camera for short-wave measurement of high temperatures for the first time on the market. By using a high-dynamic-Si array a continuous range of 600 ° C to 1500 ° C or optional 1400 ° C to 3000 ° C is realized. The device PYROVIEW 480N portable is measuring online thermal images with 480 x 360 pixels and a frame rate of 25 Hz. The thermal images are displayed user-friendly on a touchscreen display. The display of the center-temperature or maximumtemperature is carried out with the visualization of the measuring point as a numerical value. The camera allows the recording of still images and sequences. An Ethernet (RJ45) port transmits the data to a PC.

The operator can adjust easily and intuitively essential parameters of the camera via the input on the touch screen. Measurements in metallurgy, ceramics and cement industry as well as in glass manufacturing and processing are the preferred applications of the new portable infrared camera. The thermal imagers PYROVIEW 480N portable are available from the 2nd quarter in 2016. For more information,please contact us.

Drastic failure reduction in non-contact temperature measurement to 3000 ° C at short wavelengths

The emissivity in harsh environments in metallurgy has significant influence on the temperature measurement accuracy. Measurements at short wavelengths can reduce this influence significantly.

For example if, at a substrate temperature of 1200 °C, the emission factor is set to 10 percent incorrectly, there is a resulting measurement error of only 1.3 percent in the spectral range from 0.8~1.1 microns. However, is a thermal imager in the longwave standardized spectral range from 8~14 microns used, the measurement error is more than 11 percent, or almost 140 °C.

With increasing object temperature the percentage measurement error is even greater. The short-wave measurement is therefore imperative to ensure high measurement accuracy and thus in the end the desired material properties or the quality of the workpieces.

Credit: DIAS Infrared GmbH, Shutterstock.de/Can Erdem Satma

参见链接: 短波、便携式红外热像仪 , PYROVIEW M480N , M480N
